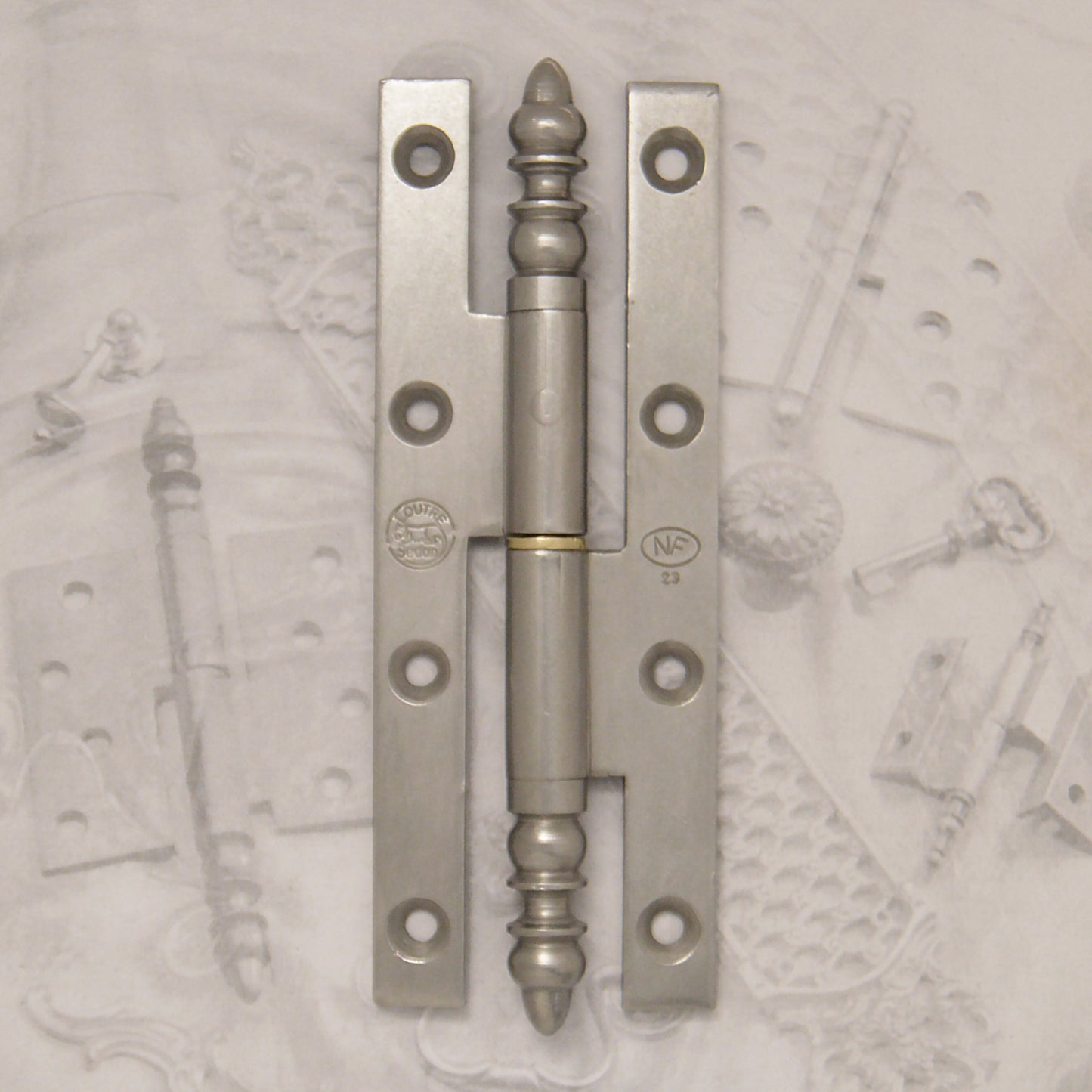

02.0103 FULL MORTISED INSET IRON HINGE

02.0103 FULL MORTISED INSET IRON HINGE

$22.48
$22.48
Sale Sold out
Shipping calculated at checkout.

****SOLD AS EACH****

Solid steel lift-off hinge. Available in 4 sizes these hinges are very popular in France and are found on all sorts of doors, windows and cabinets throughout the country. Largest 2 sizes can be used on residential interior doors.



Hinges are handed LEFT or RIGHT, refer to drawing:



Two smallest size for cabinetry only, and two largest sizes suitable for cabinetry as well as full size interior and exterior doors.

You will need a minimum of two hinges per door.

Other dimensions:

02.0103.81 (80x45mm)

Barrel diameter: 7/16",      Blade width: 1-/2".

Barrel Height: 3-1/8"         Thickness: .100 -+(.005)



02.0103.111 (110x55mm)

Barrel diameter: 9/16",      Blade width: 9/16".

Blade Height: 4-5/16"         Thickness: .125 -+(.005)



02.0103.141 (140x55mm)

Barrel diameter: 1/2",       Blade width: 5/8".

Blade Height: 5-1/2"        Thickness: .125 -+(.005)



02.0103.161 (160x60mm)

Barrel diameter: 9/16",     Blade width: 5/8".

Blade Height: 6-5/16"        Thickness: .143 -+(.005)

Made in France.

Supplied with Philip screws.
