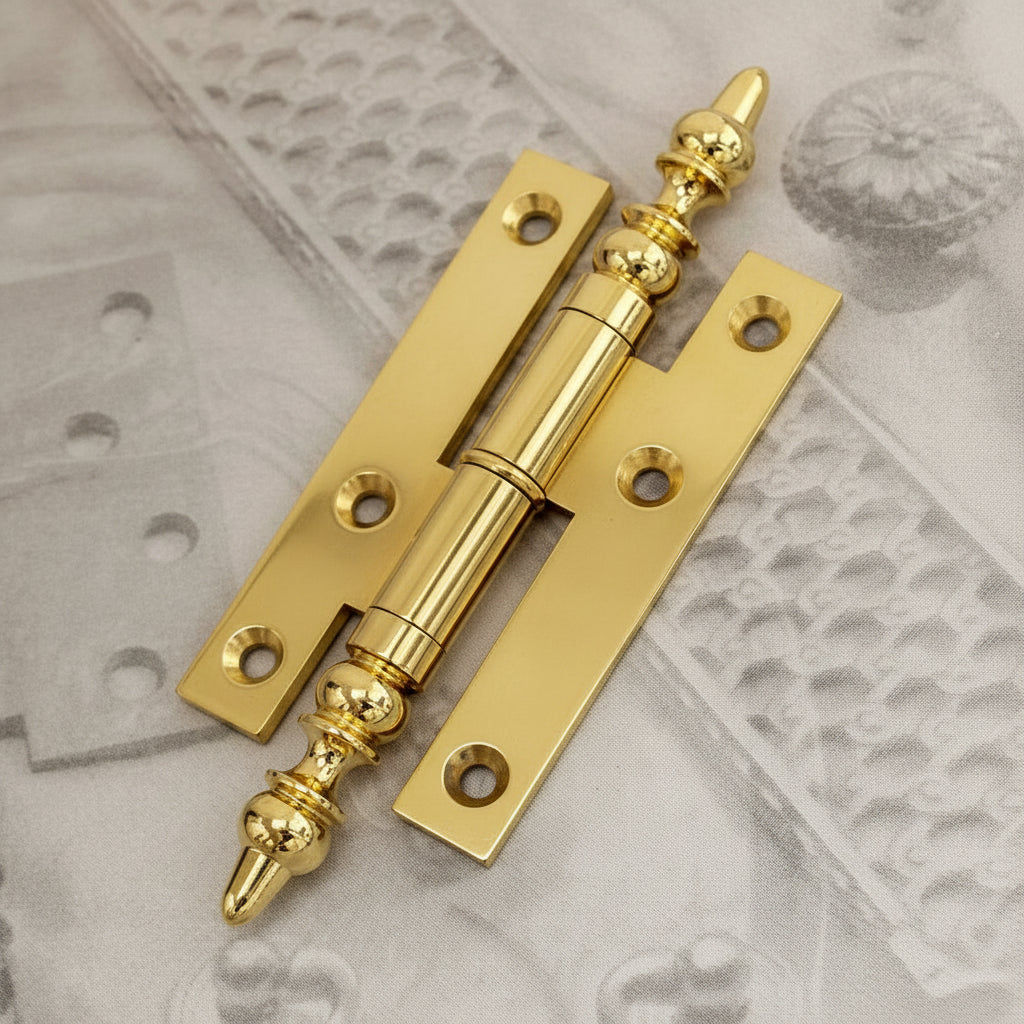

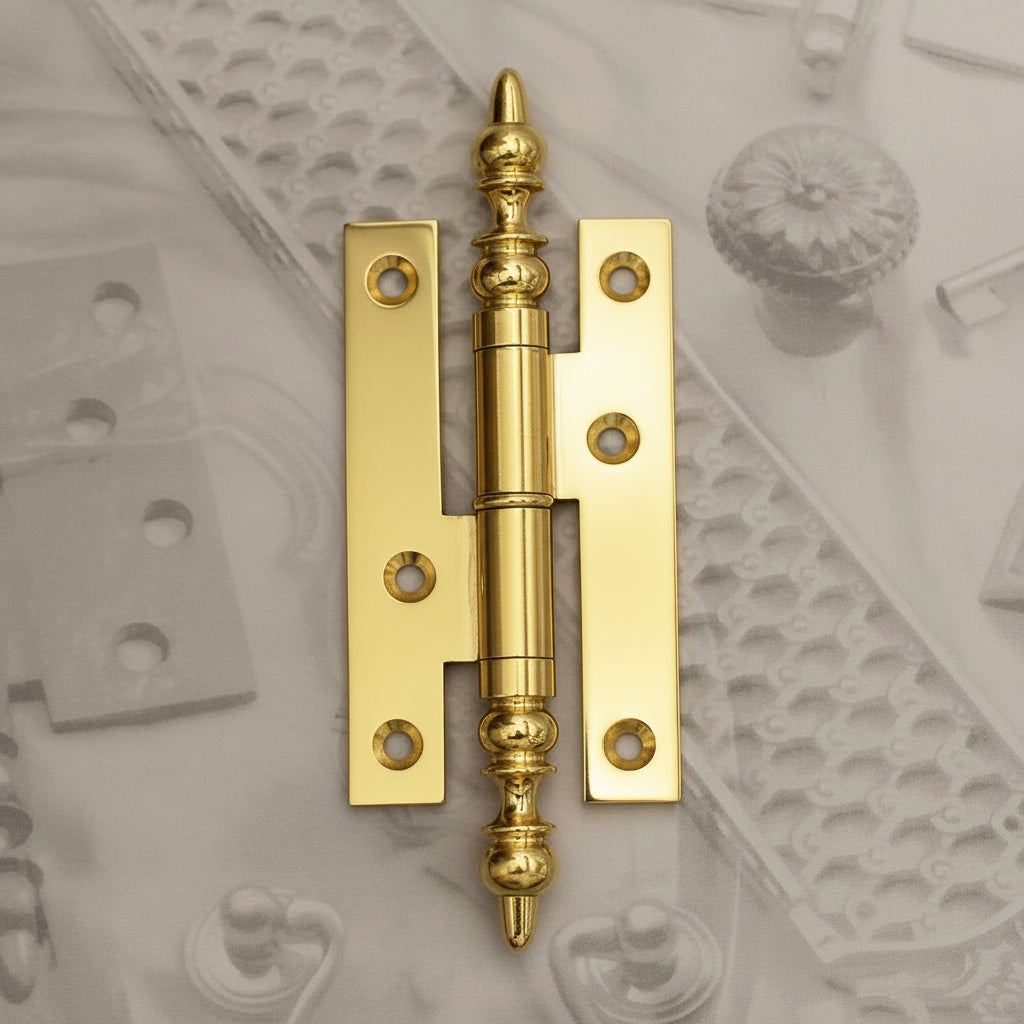

02.0103.082 INSET BRASS HINGE

Made in France from extruded brass with a 1/4" stainless steel pivot pin, this hinge is a classic and a solid addition for traditional custom cabinetry.

****SOLD AS EACH****

Hinges are handed LEFT or RIGHT, refer to drawing:

You will need a minimum of two hinges per door.

Extruded brass lift-off hinge.

Dimensions:

Total length: 4-3/16"

Barrel diameter: 3/8"

Blade width: 1/2"

Total hinge width: 1-13/16"

Blade thickness:  .100 -+(.005)

Polished Brass finish, hand polished.

Made in France.

Supplied with Philip screws.
