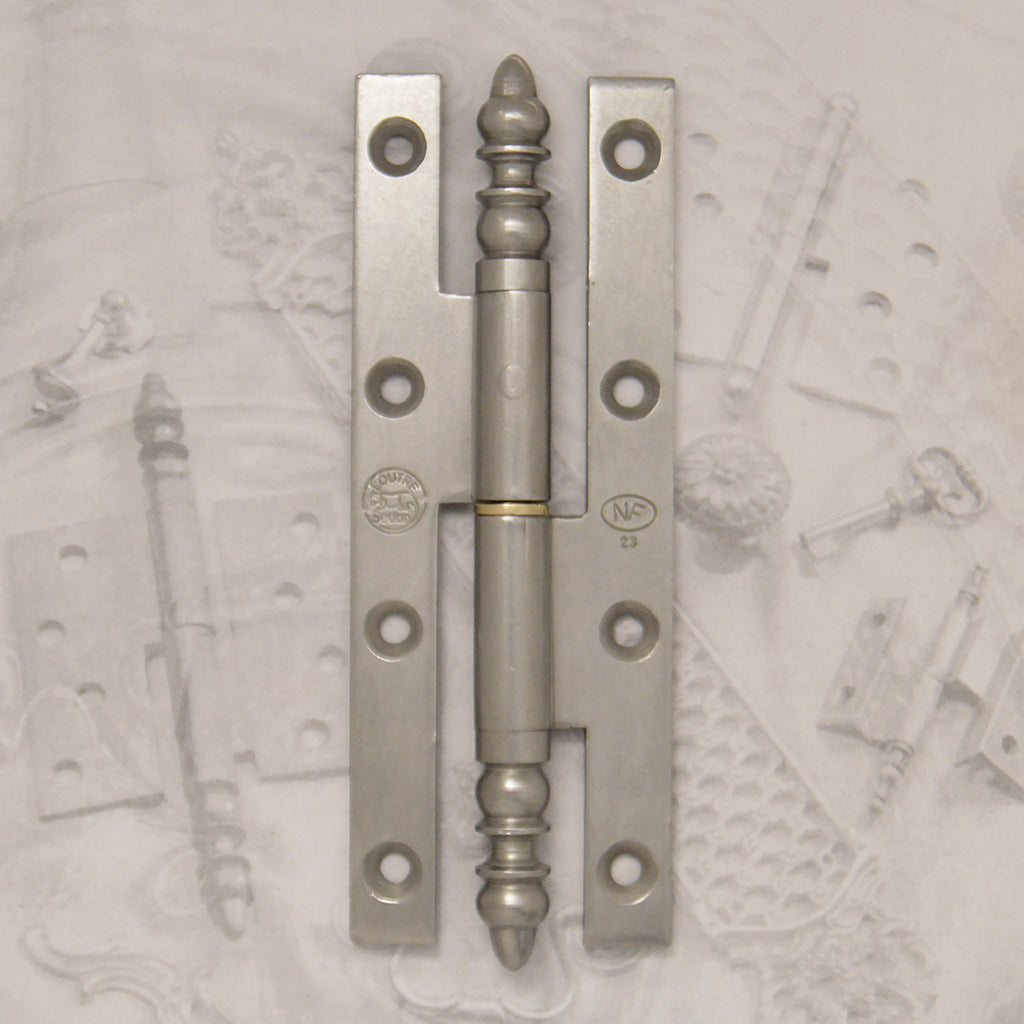

02.0103 FULL MORTISED INSET IRON HINGE
****SOLD AS EACH****
Solid steel lift-off hinge. Available in 4 sizes these hinges are very popular in France and are found on all sorts of doors, windows and cabinets throughout the country. Largest 2 sizes can be used on residential interior doors.
Hinges are handed LEFT or RIGHT, refer to drawing:
You will need a minimum of two hinges per door.
Other dimensions:
02.0103.81 (80x45mm)
Barrel diameter: 7/16", Blade width: 1-/2".
Barrel Height: 3-1/8" Thickness: .100 -+(.005)
02.0103.111 (110x55mm)
Barrel diameter: 9/16", Blade width: 9/16".
Blade Height: 4-5/16" Thickness: .125 -+(.005)
02.0103.141 (140x55mm)
Barrel diameter: 1/2", Blade width: 5/8".
Blade Height: 5-1/2" Thickness: .125 -+(.005)
02.0103.161 (160x60mm)
Barrel diameter: 9/16", Blade width: 5/8".
Blade Height: 6-5/16" Thickness: .143 -+(.005)
Made in France.
Supplied with Philip screws.
